HP / Agilent 8563E

Agilent HP 8563E 9 kHz - 26.5 GHz RF Spectrum Analyzer - Upgraded with Color LCD
  • HP / Agilent 8563E for sale
Mouse move on Image to zoom

Datasheets

$4495.00 Sorry, Out of Stock

Model: HP / Agilent 8563E     Condition: Reconditioned

***Includes Color LCD Upgrade***

The Agilent HP 8563E 9 kHz to 26.5 GHz Portable RF Spectrum Analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage. Time-gated signal analysis allows you to easily measure time-varying signals such as pulsed RF, time-division multiple access, interleaved, and burst-modulated. For millimeter applications that don't require full microwave coverage, the 8563E with the Agilent 11970 series harmonic mixers or Agilent 11974 series preselected mixers is a lower-cost solution.


Users Manual (QR Link)
Quick Reference Guide (QR Link)
Calibration Guide (QR Link)
Power Cord
BNC (f) to N (m) Adapter
SMA (f) to N (m) Adapter
BNC Cable 9 inch
Front Cover (installed)
4 mm Hex Key
Mass Memory Module (installed)
LO Output Termination (installed)
Item Description
HP / Agilent 11970A Agilent HP 11970A Waveguide Harmonic Mixer, 26.5 GHz to 40 GHz. SMA connection kit available separately. Contact Sales
HP / Agilent 11975A Agilent HP 11975A RF Amplifier. 2.0-8.0 GHz +6 to +16 dBM output.
HP / Agilent 85024A Agilent HP Keysight 85024A - 300 kHz to 3 GHz High-Frequency Probe with complete accessory kit
HP / Agilent 85645A Agilent HP 85645A - Tracking Source / Generator. 300 KHz to 26.5 GHz
HP / Agilent 85620A Mass Memory Module with Phase Noise Utility pre-installed.
HP / Agilent Option 908 5062-4841 Agilent HP Option 908 (5062-4841) Rack Mount without handles
HP / Agilent Option 909 Agilent HP Option 909 Rack Mount kit with handles
HP / Agilent 8564E Agilent HP 8564E 9 kHz to 40 GHz high performance portable spectrum analyzer with LCD Upgrade (Compare to 8564EC)
Item Description Price
Agilent / HP 001 for 856XE Option 001 for 8560E series spectrum analyzers. 310.7 MHz IF output. Sold installed only. Not available for separate sale. $295.00

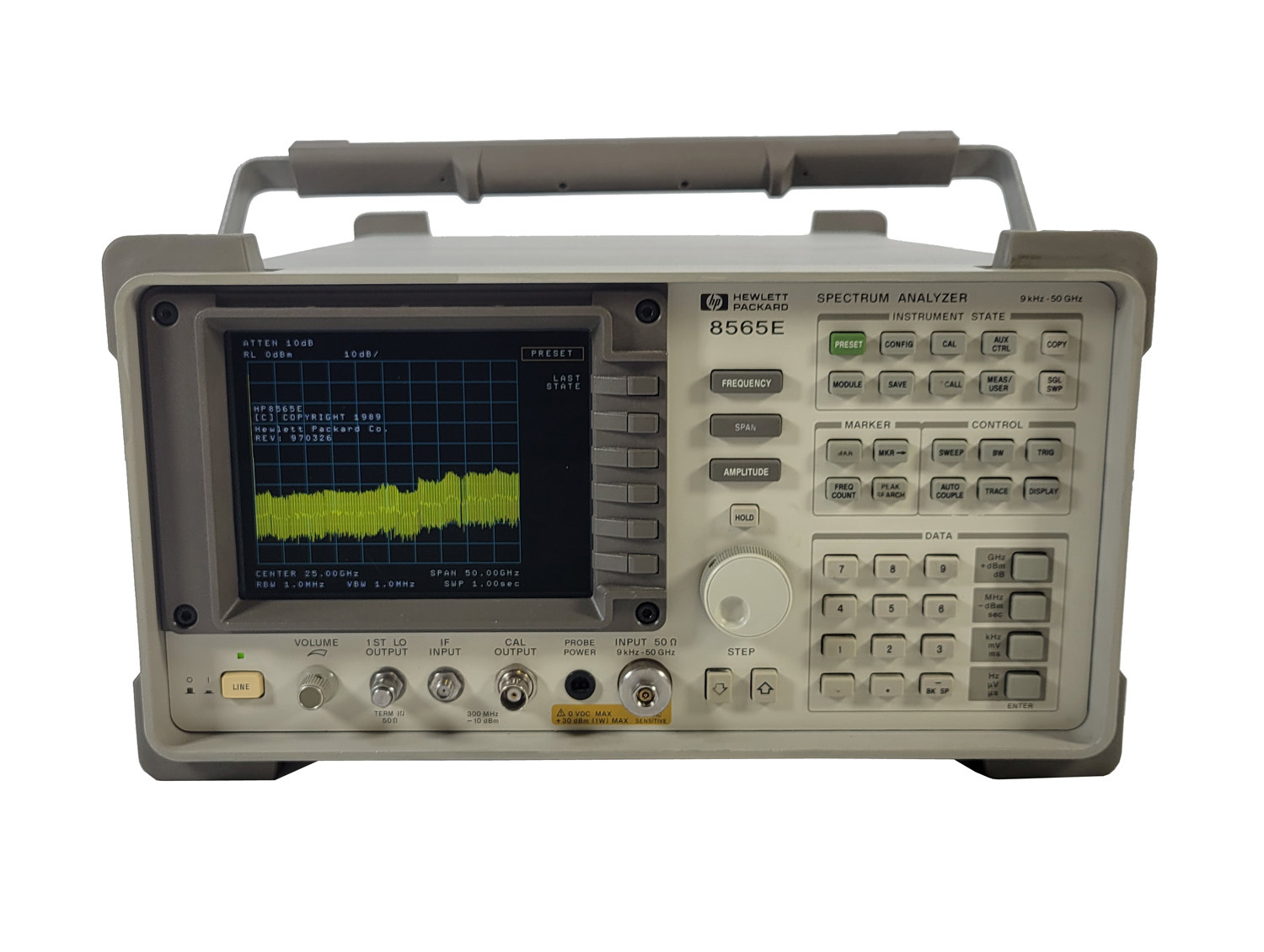

Similar Products
