HP / Agilent 8565E

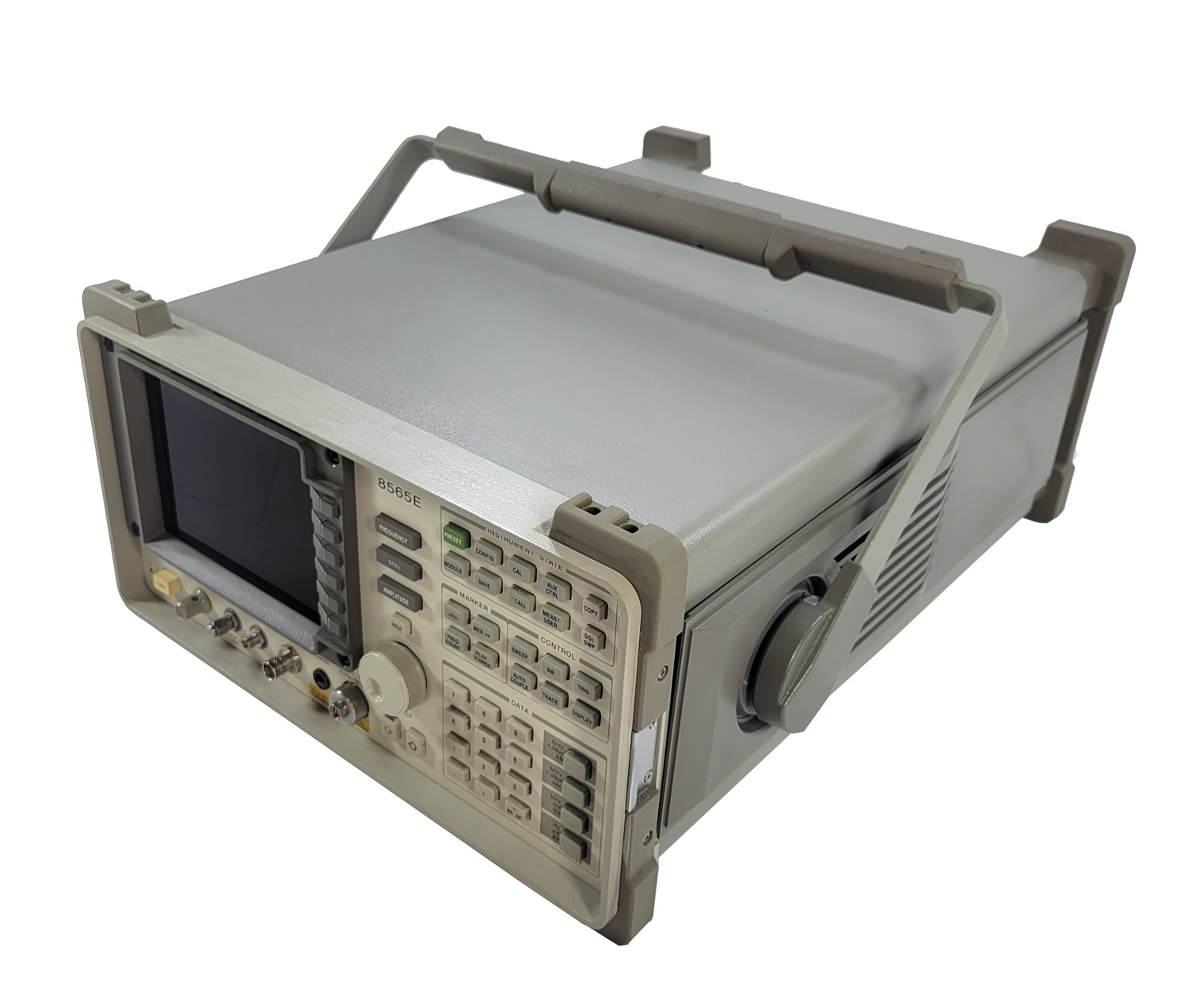

Agilent HP 8565E 9 kHz to 50 GHz Portable Millimeter Wave Spectrum Analyzer
  • HP / Agilent 8565E for sale
Mouse move on Image to zoom

Datasheets

$9995.00 Sorry, Out of Stock

Model: HP / Agilent 8565E     Condition: Reconditioned

Key Features & Specifications

  • Continuous 30 Hz to 50 GHz sweep
  • Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
  • Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
  • Precision timebase and 1 Hz counter resolution
  • MIL-T-28800 rugged
  • Measurement personalities for digital radio and phase noise measurements

Description

The Keysight 8565E portable millimeter spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. You can measure signals from 30 Hz to 50 GHz (preselected above 2.75 GHz) with a single coaxial connection.

The 8565E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

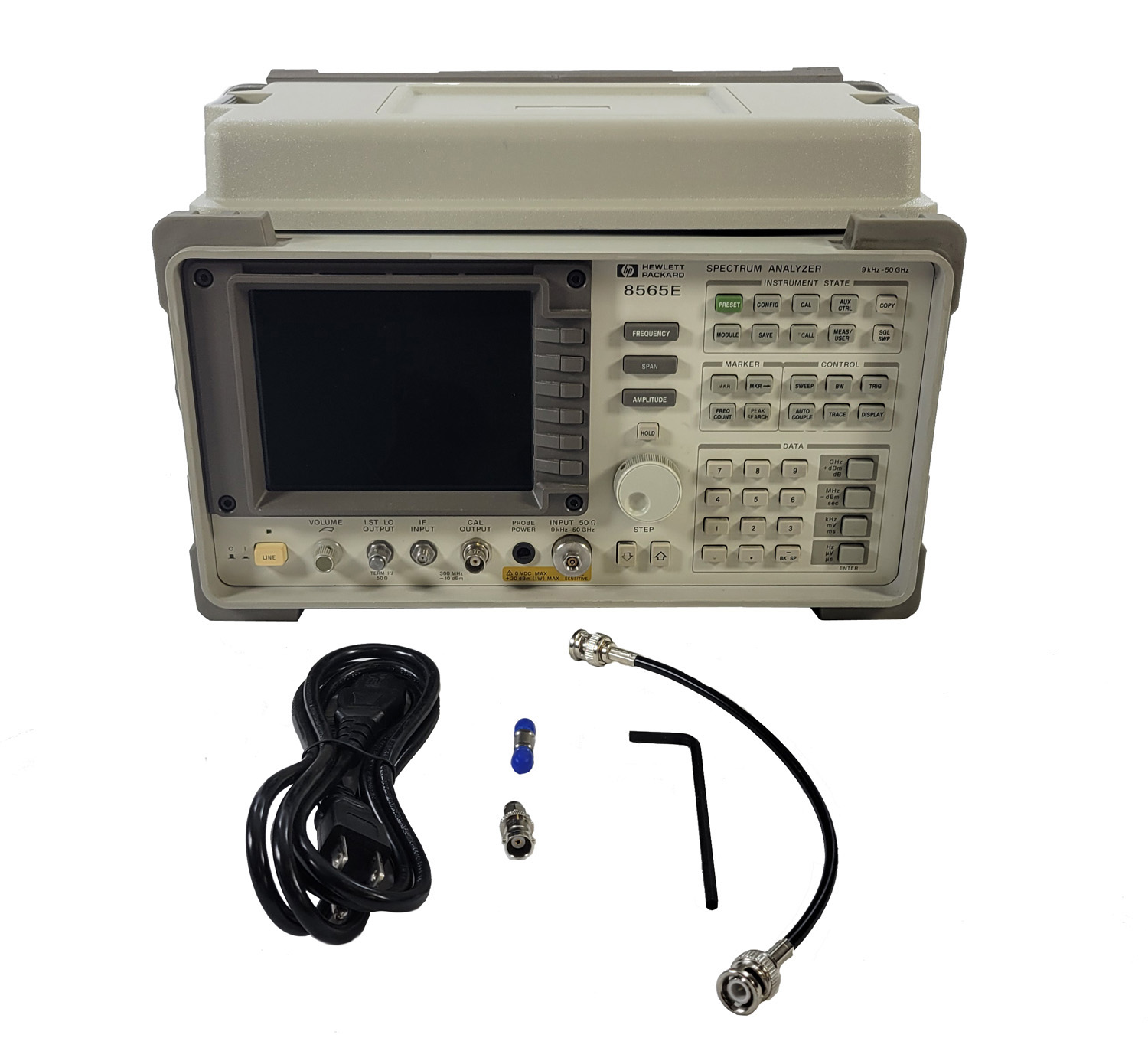

User Manual
Quick Reference Manual
Calibration Guide
Power Cord
Front Cover

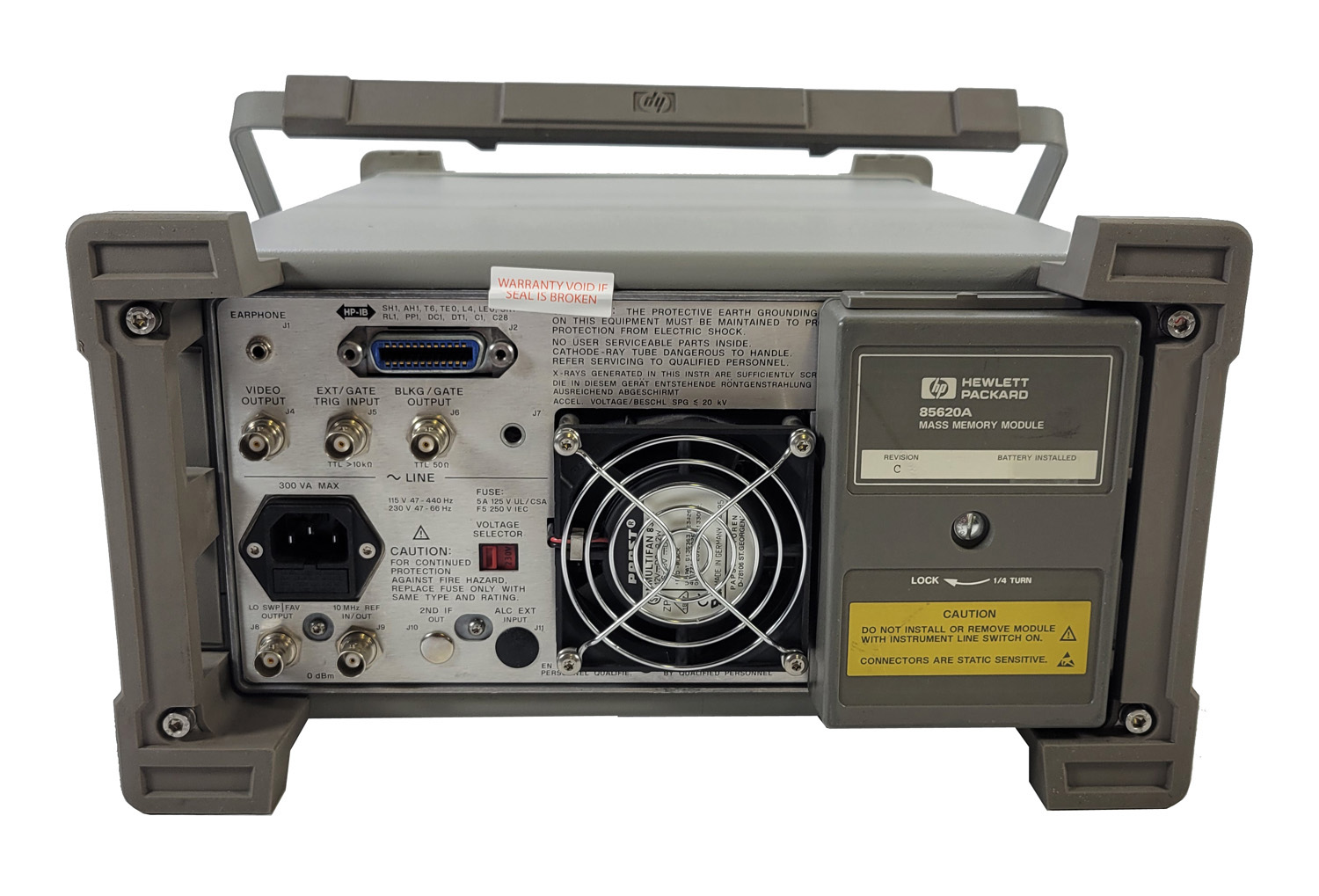

Mass Memory Module 85620A
4mm Hex Wrench
Adapter K(f)-2.4mm(f)
Adapter 2.4mm (f)-(f)
Termination 50 Ohm SMA (m)
Calibration Cable 9" BNC (m)-(m) w/adapter BNC (f)-SMA (m)
Item Description
HP / Agilent 85024A Agilent HP Keysight 85024A - 300 kHz to 3 GHz High-Frequency Probe with complete accessory kit
HP / Agilent 85620A Mass Memory Module with Phase Noise Utility pre-installed.
Item Description Price
Agilent / HP 001 for 856XE Option 001 for 8560E series spectrum analyzers. 310.7 MHz IF output. Sold installed only. Not available for separate sale. $295.00
