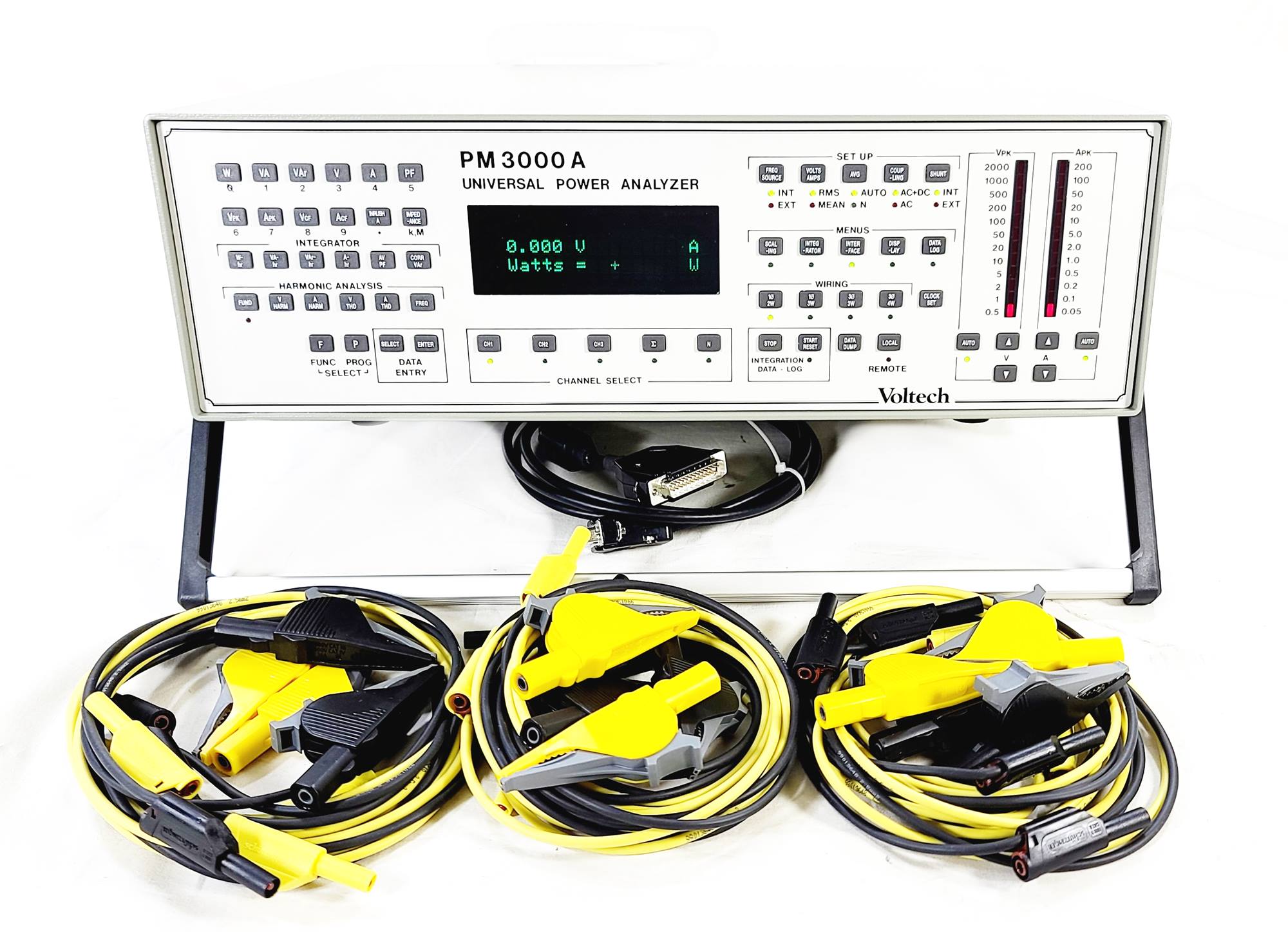

Deceptively easy-to-use and always providing reliable and stable measurements, the PM3000ACE is feature-packed with measurement algorithms gained from years of experience with our customer¿s applications. The versatile PM3000ACE can be quickly configured to make reliable, accurate measurements in even the most demanding power electronics applications.
Intuitive front-panel or Windows software operation.
High 0.05% basic accuracy.
Wide bandwidth measurements, DC and 0.1Hz to 1MHz.
Measures W, V, A, VA, Var, power factor, Cos, Vpk, Apk, crest factors, frequency and inrush current.
Harmonics of V, A (incl. phase) and W to the 99th. THD.
Integrator for W-hr, VA-hr, A-hr, VA-hr, average and target PF.
Crest factors up to 20.
Accurate on distorted waveforms and at low power factors.
VPAS PC software for set-up, data storage and handling.
IEC61000-3 Windows software for full or pre-compliance testing.
All interfaces fitted as standard.
Users Manual (QR Link)
Power Cord
Yellow Test Lead (Qty 6)
Black Test Lead (Qty 6)
Yellow Crocodile Clip (Qty 6)
Black Crocodile Clips (Qty 6)
RS232 Cable
