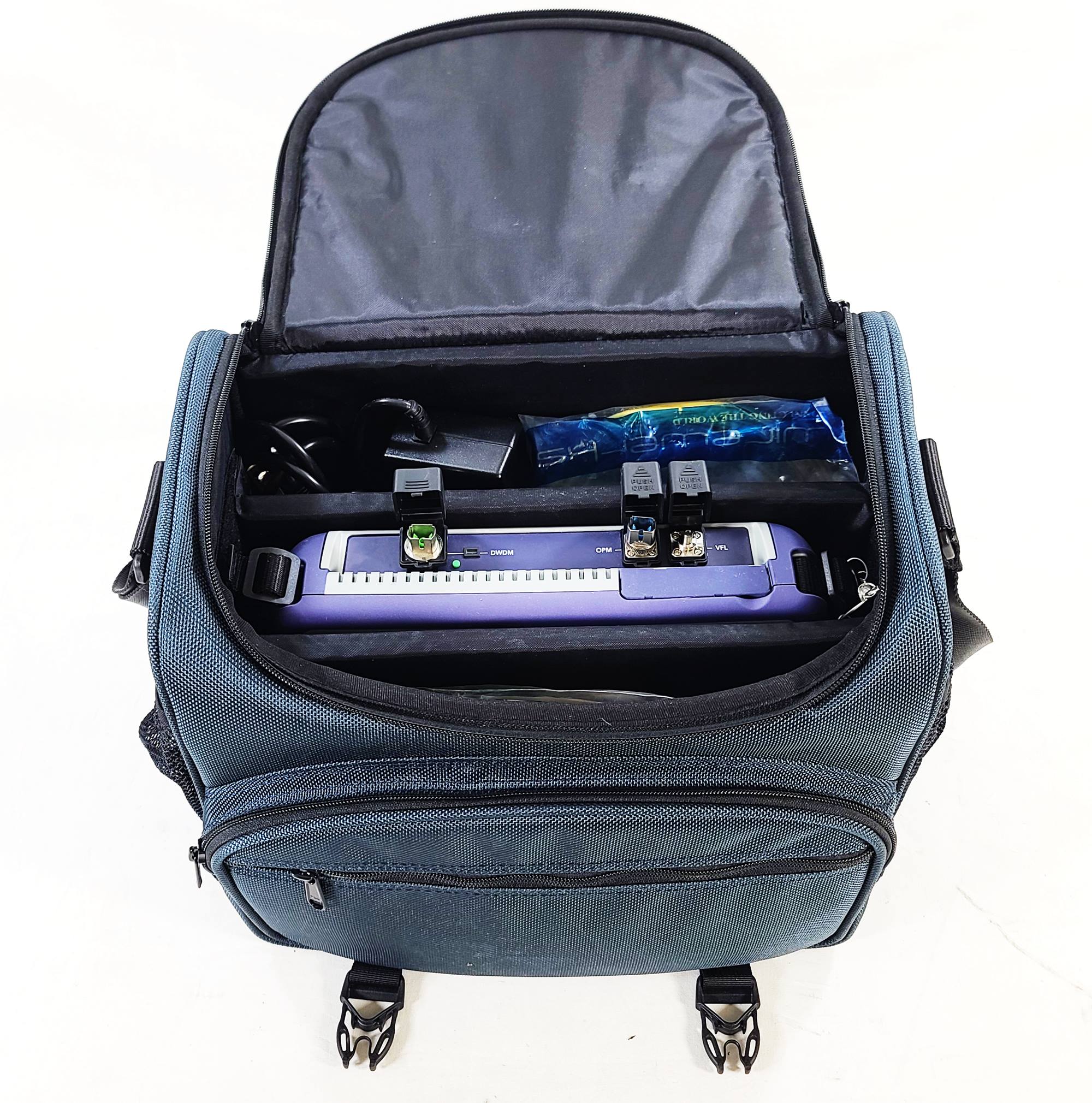

VeEX RXT-1200 RXT-4113+DWDM

VeEX RXT-1200 Platform with RXT-4113+DWDM OTDR Module. OTDR DWDM wavelengths / channels in the1550 nM band down to 50 GHz spacing.
$2495.00 In Stock!

Model: VeEX RXT-1200 RXT-4113+DWDM     Condition: Reconditioned

Includes the following software options (owned):

  • 499-05-638 OTDR V-Scout:Intelligent fiber Optics Link Mapper
  • 499-05-609 OTDR VFL
  • 499-05-610 OTDR Light Source
  • 499-05-612 OTDR High Power OPM/+25 to -50 dBm
  • 499-05-167 Fiber Scope Expert
  • 499-05-175 USB Bluetooth File Transfer Support
  • 499-05-072 Advanced Management
  • 499-05-017 WiFi Wiz
  • 499-05-640 DI-1000 Fiber Scope Auto Focus Detect and Pass/Fail

RXT-1200 Modular Test Platform

The RXT® is the industry’s most flexible, compact, and future-proof hand-held test solution for core, metro, access and fiber optics applications. The forward-looking RXT-1200™ platform addresses the challenges of communication service providers to increase efficiency and productivity. This flexible test platform lowers operational and capital expenditures associated with handling multiple technologies required to address today’s Access, Business, Metro, Transport and Core services, as well as keeping up with future technologies and testing requirements.

The RXT® family of modules offer a full range of link and service testing capabilities, from Core to Access, from Lab to Field and from 64k to 400G, with a complete range of communication technologies, including eCPRI, CPRI/OBSAI, OTN, SDH/SONET, PDH/DSn, Carrier Ethernet, SyncE, 1588v2 PTP, Fibre Channel, OTDR, OSA. All supported by a single rugged hand-held test platform.

RXT-4113+ 500k DWDM Optical / SM1550D Wavelengths

  • DWDM wavelengths per ITU-T G.694.1 (C-band, 1529.16 to 1563.86 nm, Channel #s 17-60) in 50, 100 or 200 GHz steps
    • Optional extended channel 14-62 available
    • TEC laser stabilization for hot and cold weather conditions
    • Built-in DWDM wavelength locker with ±2.5 GHz stability
  • Sampling resolution up to 500,000 points
  • Event dead zone <0.85 m, attenuation dead zone <3.5 m
  • High dynamic range for long haul fibers and testing through xWDM Mux/demux
  • Telcordia GR-196 and SR-4731.sor file formats
  • Optional V-Scout mode – Smart Link Mapping using intuitive icons derived from multiple test acquisitions
  • Optional CWDM/DWDM/Legacy Light Source via OTDR port
  • Optional broadband Optical Power Meter
  • Optional VFL 650 nm light source
  • Built-in G.657A2 launch fiber to characterize OTDR connections and short fiber spans
  • Fixed connector or universal 2.5 mm optical interface with inter-changeable optical adapters (SC/FC/LC)

Please contact our sales department for more information.
