GW Instek LCR-821

GW Instek LCR-821 200kHz High Precision LCR Meter. 100 Hz to 200 kHz (in 504 steps). 0.05% Basic Accuracy.
  • GW Instek LCR-821 for sale
Mouse move on Image to zoom

Datasheets

$1195.00 In Stock!  Price Reduced!

Model: GW Instek LCR-821     Condition: Reconditioned

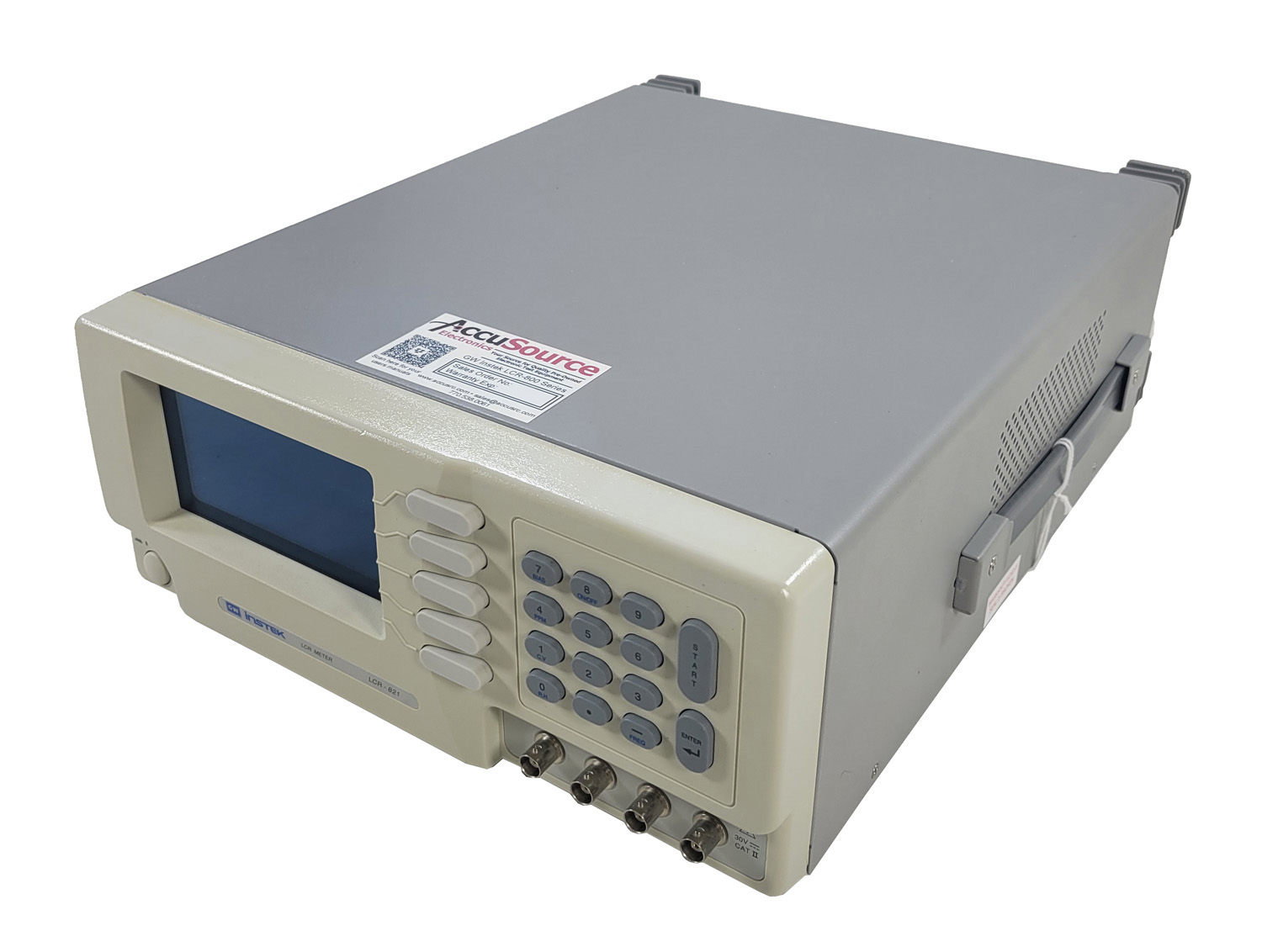

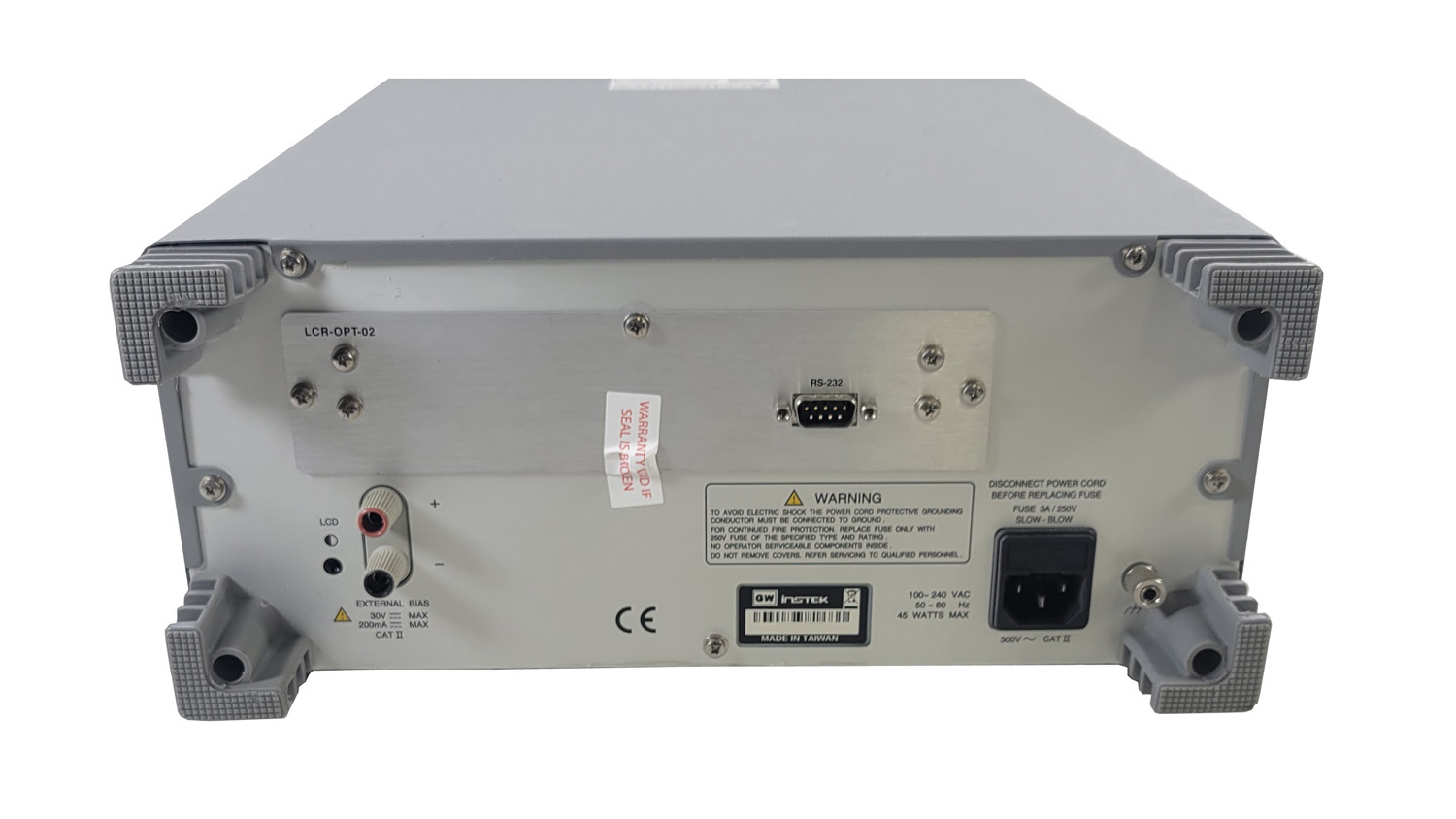

The GW Instek LCR-821 is a high-end digital LCR meter with a measurement frequency of 100 Hz to 200 kHz (in 504 steps).

The large 240 x 128 dot matrix LCD display provides ample room for two measurement items and setup parameters, allowing you to grasp measurement results quickly. All test modes are able to measure supplementary factors, such as, R/Q, C/D, C/R, and L/Q. The LCR-821 also contains precise resistance measurements as a combination of absolute value and phase angle. 100 sets of measurement setup memory allow sharing a single unit among multiple testing conditions or sites.

Features
  • Test Frequency: 100Hz~200kHz

  • 0.05% Basic Accuracy
  • 100 Sets Memory for Save/Recall of Settings
  • R/Q, C/D, C/R, L/Q, Z/θ, L/R Test Modes
  • Absolute Value,ΔValue, and Δ% Measurement Display
  • 240 x 128 dot Matrix LCD Display
  • Displays Condition and Test Result Simultaneously

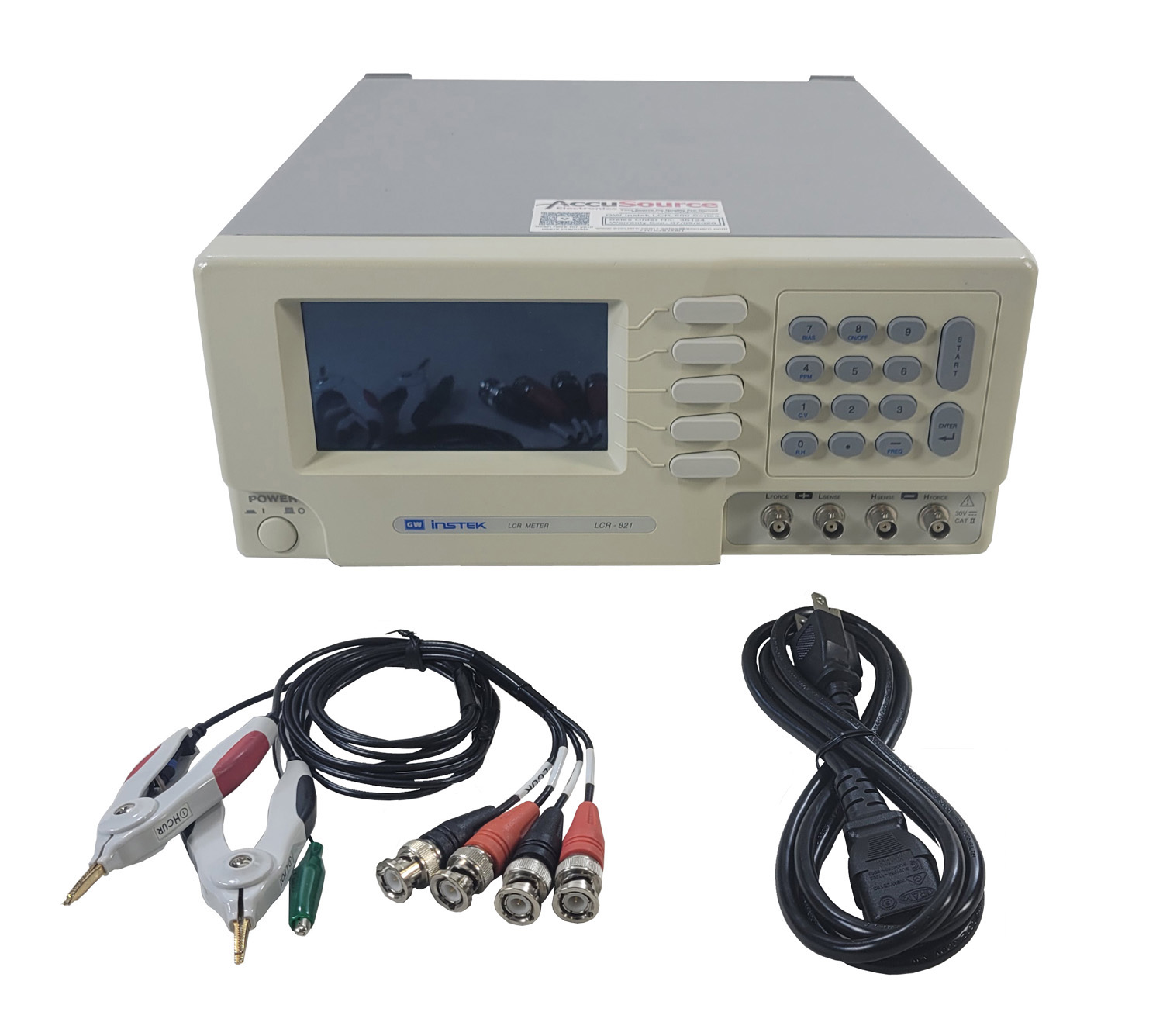

User Manual
Power Cord
Kelvin Test Lead Set
Item Description
Agilent / HP 16034B Agilent HP 16034B Tweezer test fixture for LCR meters
