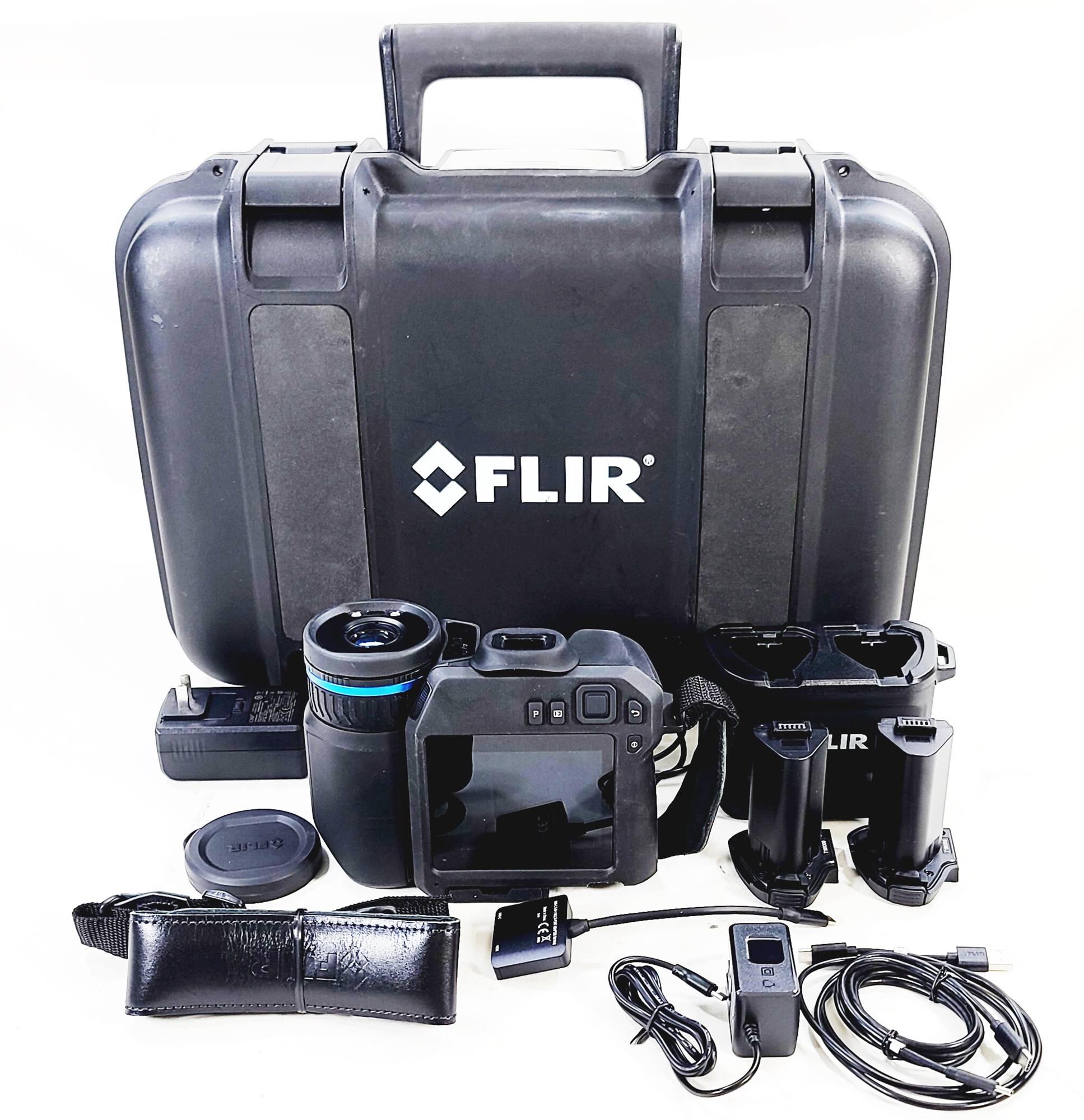

FLIR T865-24

Note - Export restrictions may apply.  This product is intended for resale within the U.S. only.  All others must inquire with our sales department prior to purchasing.

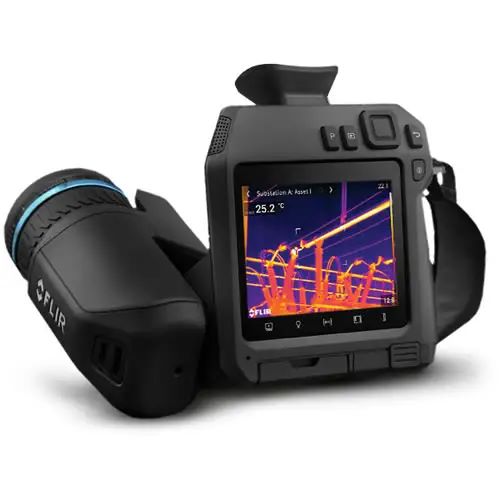

The Teledyne FLIR T86524 High-Performance Thermal Camera with 24° Lens is a non-contact inspection tool with an 180° rotating optical block that allows users to safely assess the condition of critical electrical and mechanical equipment. Accurate temperature measurements can be obtained via the 1-Touch Level/Span contrast enhancement and laser–assisted autofocus.

• IR Resolution: 640 x 480 px
• Image Frequency: 30 Hz
• Temperature Range: -40 - 3632°F

• Camera includes 24° lens
• Collect and manage critical data quickly and easily
• Develop and download routes to camera via Teledyne FLIR Route Creator for streamlined inspections of critical assets
• Acquire temperature data and thermal and visual imagery in logical sequences for faster preventative/predictive maintenance procedures
• Automate data management and reporting through easy transfer of organized files to Teledyne FLIR Thermal Studio
• Assess state of equipment from safe distances, at any angle, or in any lighting condition
• Use camera in any environment - indoors or out - with large, vibrant 4-inch color LCD display and integrated eyepiece viewfinder for working in bright sunlight
• Image targets overhead or down low without strain thanks to 180° rotating optical block and ergonomic design
• Accurately measure small targets over long distances or in large scenes by pairing high-resolution IR sensor with optional 6° telephoto lens (not included)
• Save time and share data faster to increase in-field efficiency
• Ensure precision measurement with laser-assisted autofocus, 1-Touch Level/Span, and exceptional temperature accuracy
• Avoid diagnostic errors with industry-leading image clarity from Teledyne FLIR Vision Processing, combining MSX, UltraMax, and proprietary adaptive filtering algorithms
• Optimize workflows with reporting features such as built-in voice annotation, customizable work folders, and Wi-Fi sync to Teledyne FLIR mobile apps

Image and Optical Data

• IR Resolution: 640 x 480 (307,200 pixels/1,228,800 pixels with UltraMax)
• Detector Pitch: 12 μm
• Object Temperature Range: 40°C to 120°C (-40°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 2000°C (572°F to 3632°F)
• Digital Zoom: 1-8x continuous
• Macro Mode: 50 μm min. focus distance (24° lens)
• Spotmeter and Area: 10 and 5 in live mode
• Accuracy: ±1°C (±1.8°F): 5°C to 100°C (41°F to 212°F); ±1%: 100°F to 120°C (212°F to 248°F); ±2°C (±3.6°F): -40°C to 100°C (-40°F to 212°F); ±2%: 100°C to 650°C (212°F to 1202°F), 300°C to 2000°C (572°F to 3632°F)

Detector Data

• Detector Type and Pitch: Uncooled microbolometer
• Spectral Range: 7.5 to 14.0 μm
• Image Frequency: 30 Hz
• Lens Identification: Automatic
• F-number: f/1.3 (24° lens)
• Focus: Continuous with laser distance meter (LDM), One-shot LDM, One-shot contrast, manual
• Minimum Focus Distance: 0.15 m/0.49 ft (24° lens)
• Programmable Buttons: 2

Image Presentation

• Display: 4-inch, 640 x 480 pixel touchscreen LCD with auto-rotation
• Digital Camera: 5 MP with built-in LED photo/video lamp
• Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
• Image Modes: Infrared, visual, MSX, Picture-in-picture
• Picture-in-Picture: Resizable and movable
• UltraMax: Activated in menu and processed in Teledyne FLIR reporting software

Measurement and Analysis

• Measurement Presets: No measurement, Center spot, Hot spot, Cold spot, UserPreset 1, User Preset 2
• Laser Pointer: Yes
• Laser Distance Meter: Yes; dedicated button, displays distance on-screen
• On-screen Area Measurement: Yes

Annotations

• Teledyne FLIR Inspection Route: Enabled in camera
• Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
• Text: Predefined list or touchscreen keyboard
• Image Sketch: Infrared images only, from touchscreen
• GPS: Automatic image tagging
• METERLiNK: Yes; connects to METERLiNK-enabled Teledyne FLIR meters

Image Storage

• Storage Media: Removable SD card
• Image File Format: Standard JPEG with measurement data included
• Time Lapse (Infrared): 10 sec to 24 hrs

Video Recording and Streaming

• Radiometric IR Video Recording: Real-time radiometric recording (.csq)
• Non-radiometric IR or Visual Video: H.264 to memory card
• Radiometric IR Video Streaming: Compressed, over UVC
• Non-radiometric IR Video Streaming: H.264, MPEG-4 over Wi-Fi; MJPEG over UVC or Wi-Fi
• Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• Video Out: DisplayPort

Additional Data

• Battery Type: Li-ion battery, charged in camera or on separate charger
• Battery Operation: Approximately 4 hours at 25°C (77°F)
• Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
• Shock/Vibration/Encapsulation: 25 g (IEC 60068-2-27) / 2 g (IEC 60068-2-6) / IP54 EN/UL/CSA/PSE 60950-1
• Safety: EN/UL/CSA/PSE 60950-1
