Ameritec AM-48XT

Ameritec AM48XT Handheld Analog Transmission Test Set (TIMS) 200 Hz to 20 KHz
  • Ameritec AM-48XT for sale
Mouse move on Image to zoom

Datasheets

$2195.00 In Stock!

Model: Ameritec AM-48XT     Condition: Reconditioned

What Is It?

The Ameritec Model AM48XT is a compact, user-friendly, yet powerful hand-held analog transmission test set. Weighing less than 2 lbs., it can easily be transported in a briefcase or slide into a tool kit. It is powered by four AA batteries or an accessory 110/220 VAC adapter/recharger.

How Does It Work?

The user utilizes the color-coded controls and menu selection to select the desired measure mode and send mode. Measurements are captured and are automatically displayed. Immediate display indicates if the measurement is out of range over or under. All controls are edge-mounted rocker switches or slide switches color coded with descriptive labeling on the front of the unit for all switch functions. The keypad which is normally used for dialing, has a unique secondary function which allows setting of all control parameters associated with the more complex tests. The keypad is also able to set signal generator levels and frequencies.

What Does It Do?

The Ameritec Model AM48XT can do a variety of measurements. With its built-in dial capability on dial-up networks it can access a distant responder or a second AM48XT for centralized 2-wire testing. You can use a single unit with an Ameritec responder for centralized loop back testing. Or, use two sets for a complete end-to-end test of 4-wire data lines.

What Can It Test?

A single unit with the capability to do the measurements of three separate instruments. Able to measure transmission circuits over the extended voice band 200 Hz to 20 kHz as follows:

  • dBm level or dB loss
  • Frequency
  • Frequency Response (Attenuation Distortion)
  • Noise
  • Noise with Tone
  • Signal/Noise Ratio
  • P/AR
  • 3 Level Impulse Noise
  • Phase and Gain Jitter
  • Hits and Dropouts

In addition, it is equipped with a user-programmable, non-volatile memory contained within the unit. The ability to store up to ten operator-defined send/measure test configurations, as well as up to 10 operator-defined test tone frequencies. Easily obtained stored data retrieved by a single keystroke from the user.

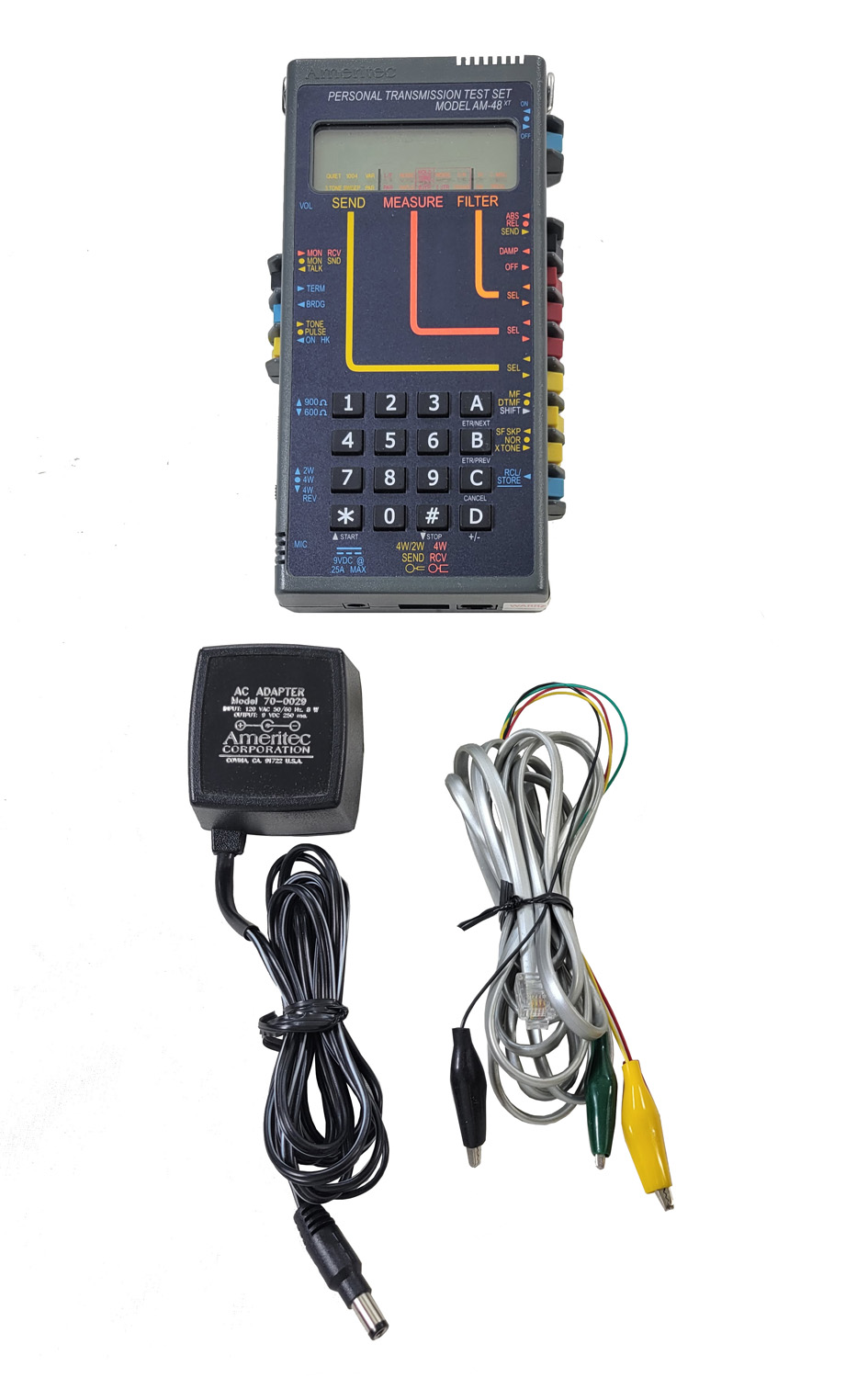

Instruction Manual
AC Adapter
AA Batteries (Qty 4) (installed)
Test Cable - RJ11 to Alligator
Carry Bag
Item Description Price
Ameritec AM-48 Ameritec AM48 Handheld TIMS Test Set. 200 Hz to 20 kHz. $1850.00
