Agilent / Keysight N6700B

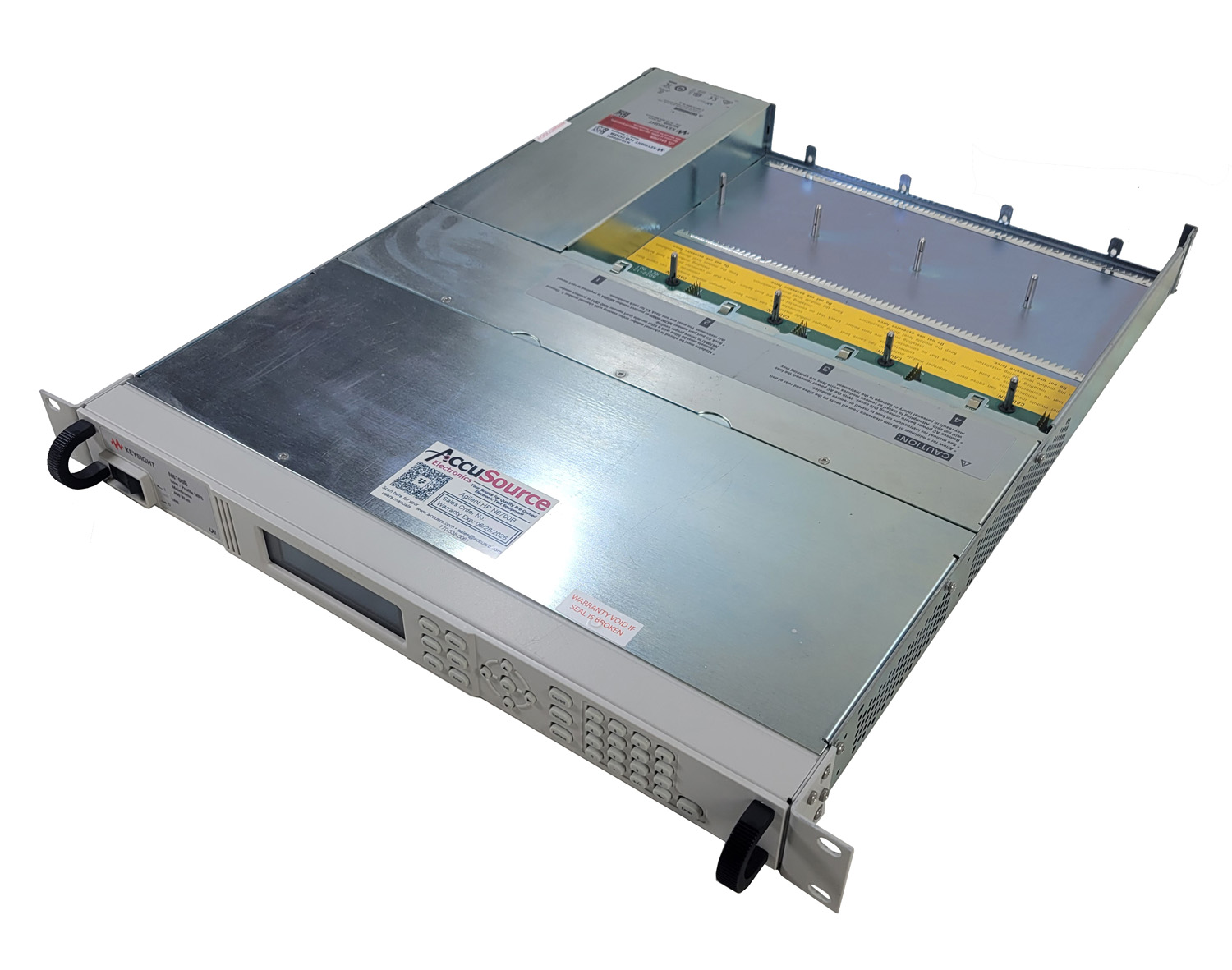

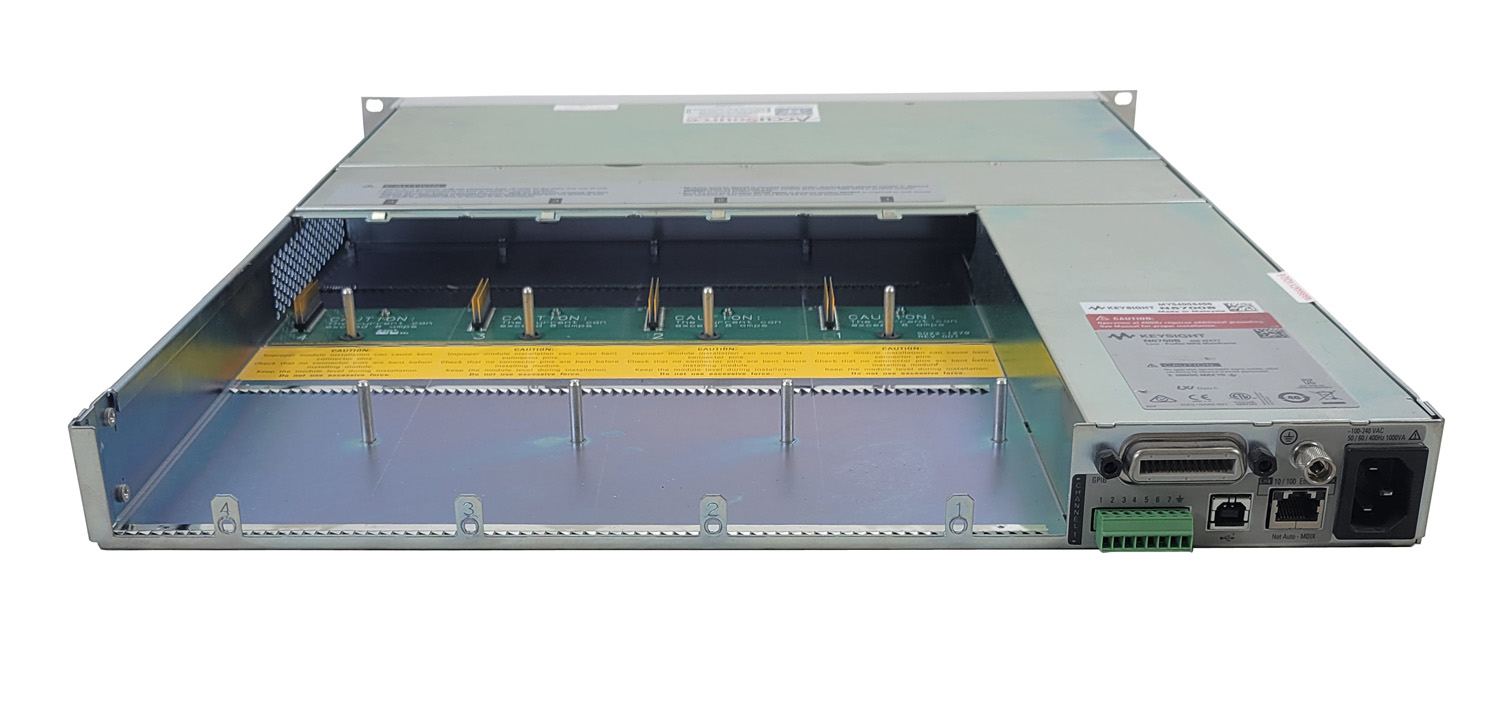

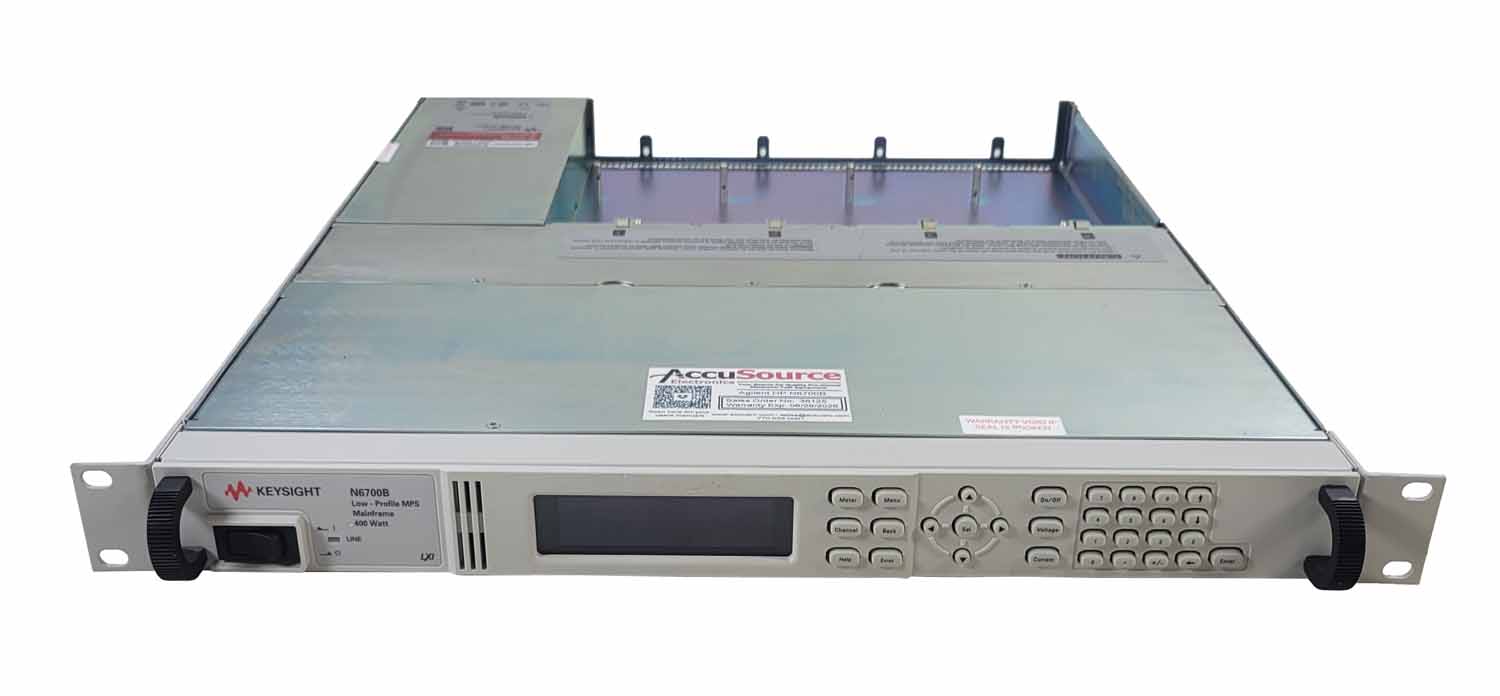

Keysight Agilent N6700B Low-Profile Modular Power System Mainframe, 400W, 4 Slots. Modules sold separately.
  • Agilent / Keysight N6700B for sale
Mouse move on Image to zoom

Datasheets

$1095.00 In Stock!

Model: Agilent / Keysight N6700B     Condition: Reconditioned

Maximum Total Output Power (= Sum of Total Module Output Power)

  • 400 W when operating from 100 - 240 VAC input

AC Input

  • Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
  • Input Range: 86 VAC - 264 VAC
  • Power Consumption: 1000 VA typical
  • Fuse Internal fuse (not customer accessible)

Protection Response Characteristics

  • INH input: 5 µs from receipt of inhibit to start of shutdown
  • Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)

The Keysight N6700B is a 400 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB, interfaces standard, and LXI compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.

User Manual (QR Link)
Service Manual (QR Link)
Power Cord
T10 Torx Tool
Digital Connector Plug (installed)
Item Description
Agilent / Keysight N6745B Keysight Agilent N6745B DC Power Module, 60V, 1.6A, 100W. Requires N6700B / N6705B mainframe (sold separately).
Agilent / Keysight N6734B Keysight Agilent N6734B DC Power Module, 35V, 1.5A, 50W. Requires N6700B / N6705B mainframe (sold separately).
Agilent / Keysight N6736B Keysight Agilent N6736B DC Power Module, 100 V, 0.5 A, 50 . Requires N6700B / N6705B mainframe (sold separately).
