Agilent / Keysight 8494B Opt. 001

Agilent HP Keysight 8494B / 001 Coaxial Step Attenuator. Type N connector. DC to 18 GHz, 0 - 11 dB, 1 dB steps.
  • Agilent / Keysight 8494B Opt. 001 for sale
Mouse move on Image to zoom

Datasheets

$549.00 In Stock!

Model: Agilent / Keysight 8494B Opt. 001     Condition: Reconditioned

The Agilent HP 8494B dc to 18 GHz manual step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option 890. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

  • Frequency Range: dc to 18 GHz
  • Attenuation Range: 0 to 11 dB, 1 dB steps
  • Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
  • Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
  • Repeatability Life: 0.03 dB maximum, 5 million cycles per section
  • Maximum RF Input Power: 1 W (average), 100 W (peak)
  • Connector Type: choice of Type-N female, SMA female, APC-7

Option included:

  • Option 001 - provides Type N female connectors
Operation Manual (QR Link)
Base Stand (installed)
Item Description
Agilent / Keysight 11716A Agilent HP Keysight 11716A Type N Interconnect Kit connects any pair of Agilent 8494/5/6/7 attenuators in series to provide a wide attenuation range with 1 dB steps
Item Description Price
Agilent / Keysight 11716A Agilent HP Keysight 11716A Type N Interconnect Kit connects any pair of Agilent 8494/5/6/7 attenuators in series to provide a wide attenuation range with 1 dB steps $195.00

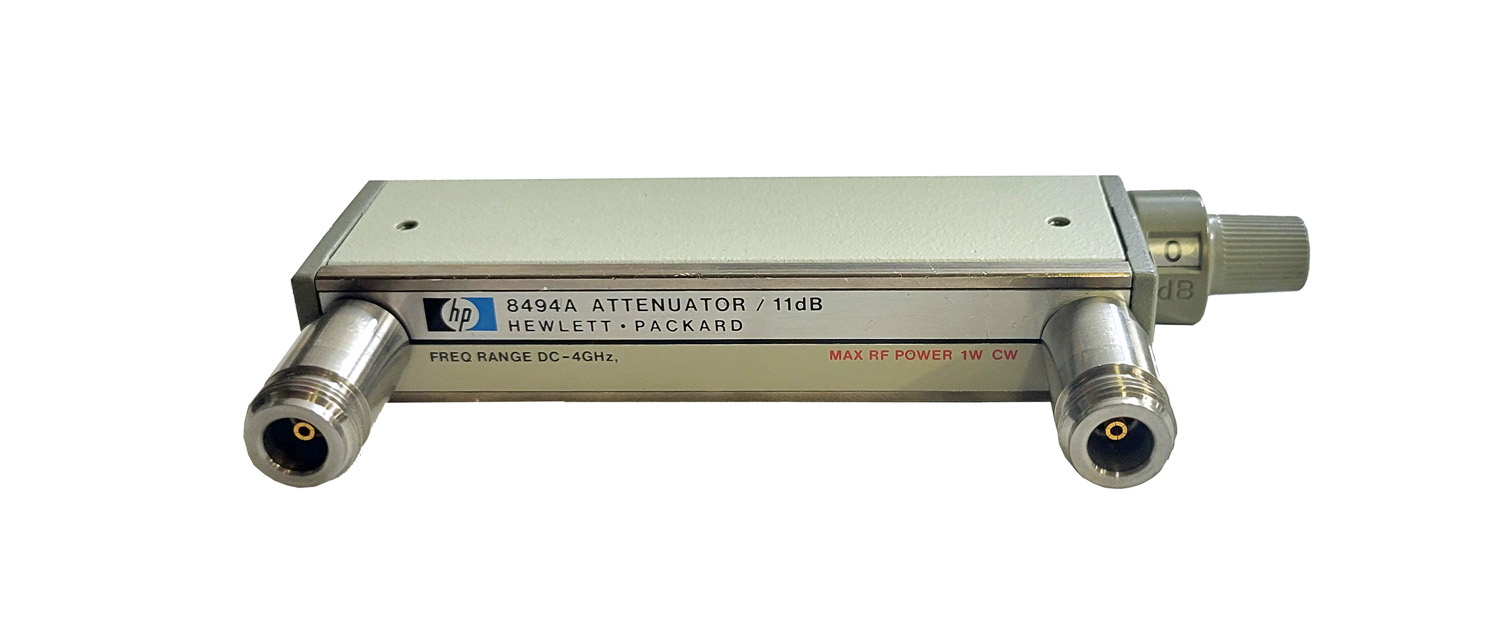

Similar Products
