maximum RF input power at 1 W (average), 50 W (peak)
connector type is a choice of 3.5 mm female, 3.5 mm male / female
programming connector has 10-pin sockets

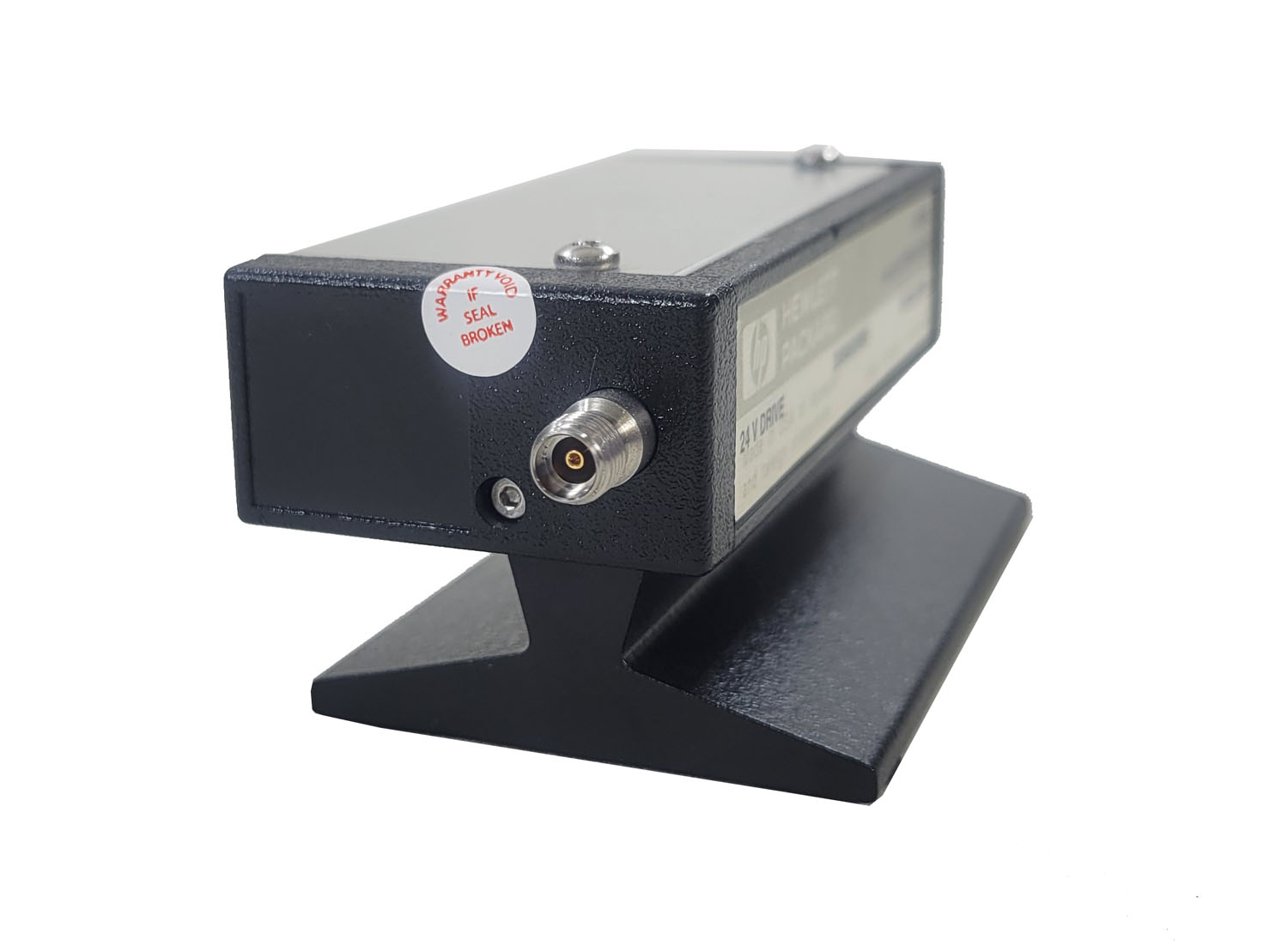

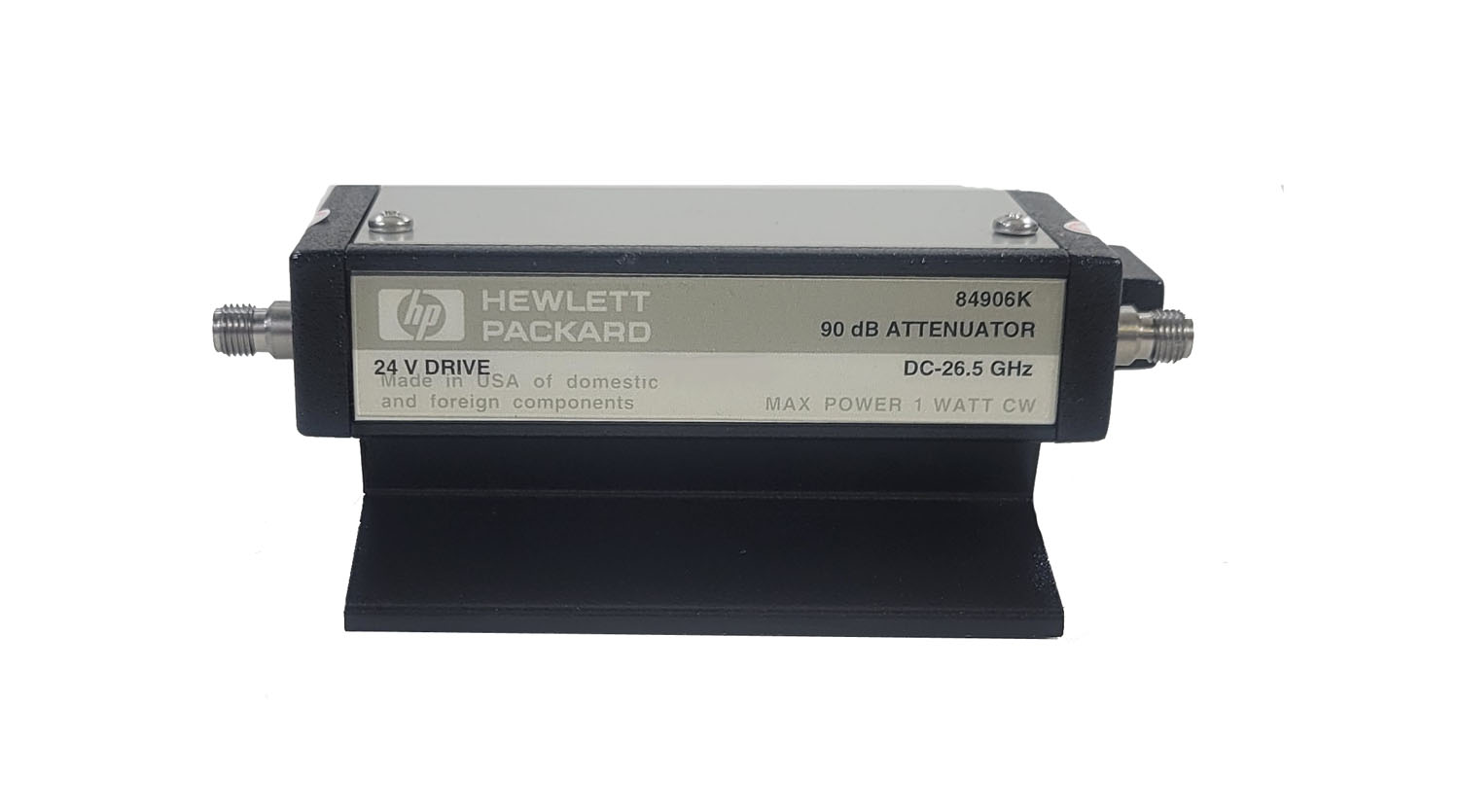

The Keysight 84906K programmable step attenuator offers coaxial
measurements to 26.5 GHz in a compact, rugged design. It offers
repeatability of better than 0.03 dB, greater than five million
switching cycles per section, and an attenuation range of 0 to 90 dB in
10 dB steps.
This latest design evolution sets new standards for size and
performance. You can achieve high attenuation accuracy and low standing
wave ratio (SWR) through the use of miniature thin-film attenuation
cards composed of high-stability tantalum nitride film of sapphire
substrate. Insertion loss is less than 2 dB of loss at 26.5 GHz. The
compact size of the unit allows for easy integration into instruments
and ATE systems.
Please contact our sales department for more information.
